Chilling/Heating High Capacity HPLC Column Ovens

$3,375.00

SKU: CO30 Category:

High capacity column chiller/heater for controlling temperature of as many as 4–30 cm long by 1” diameter columns and a valve from 4.0°C to 70.0°C

Manual

Data Sheet

Accessories

Description

The CO30 Chilling/Heating HPLC Column Oven offers the reliability of a completely solid-state system. The only moving parts in the unit are the chamber fan and the cooling fan, while its Peltier-based design removes the need for compressors or CFCs. The energy efficient CO30 uses a maximum of 230 watts of power—less than many light bulbs.

The chamber of the CO30 is epoxy-painted aluminum and resistant to most solvents. The mounting posts for the columns are mounted on the door, offering easy access to the columns, valve and fittings when the door is open.

Product Manuals

MAN CO30

Features

  • Peltier driven for heating and chilling. No CFC's
  • Temperature range from 4.0 C to 70.0 C.
  • Accurate to +/- 0.2 C . Stability to +/- 0.2 C
  • Chamber uniformity +/- 0.5 C

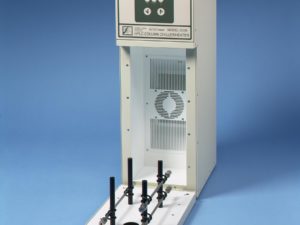

  • Chamber door opens down from top for easy, unobstructed mounting of columns
  • Mounting hole provided for valve in the door
  • Capacity 4-30 cm by 1" columns with fittings
  • Separate drains for valve and spills
  • Electronic calibration held in cmos
  • RS232 I/O port from programming via PC or for data collection
  • Timer to 99 hours with audible alarm and user settable Auto-Off
  • UL, CSA and CE compliant
  • Provided with universal power supply for use anywhere in the world
  • 12-month warranty

Applications

  • Constant temperature control HPLC at room temperature for more accurate results
  • Exact temperature control of normal phase HPLC with RID for optimal answers
  • Impurity chromatography
  • Chiral chromatography
  • Chilling and heating of columns for methods development

Full Product Specifications

Temperature
Range 4.0°C to 70.0°C
Readability 0.1°C
Accuracy ±0.2°C
Stability ±0.2°C
Sensor Type Solid State IC
Controller Type PID
Uniformity ±0.2°C
Convection Fan Yes
Timer
Range 00:01 hrs/mins to 99:99 hrs/mins
Readability 1 second
Audible Alarm Yes
Auto-Off Yes
Electrical
Heater/Chiller Peltier, 100 watts
Power Consumption 100 Watts AC
Chamber Dimensions
Height 15.625” (39.69 cm)
Width 6.385” (16.28 cm)
Depth 5.125” (13.02 cm)
Overall Chassis
Height 25.5” (64.77 cm)
Width 8.75” (22.23 cm)
Depth 13.25” (33.66 cm)
Valve hole diameter 1.625” (4.13 cm)
