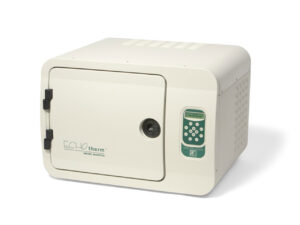

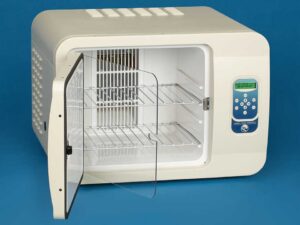

Chilling/Heating Incubators (27.5 Liter Capacity)
Chill or heat from 4.0°C to 70.0°C in 27.5 liter volume units with precise control — even at ambient temperatures.
See Accessories for additional racks and calibration meter.
IN30 Non-Programmable Chilling/Heating Incubator Manual
IN35 Programmable Chilling/Heating Incubator Manual
IN30/IN35 Data Sheet
Description
These bench-top, solid-state chilling/heating incubators are reliable, accurate and easy to use. Peltier-based for both heating and chilling, the units have no compressors or CFCs, making them truly energy efficient and vibration free.
Features
- Peltier-based. No compressors, no CFCs. Energy-efficient
- Vibration Free
- Temperature range settable from 4.0°C to 70.0°C
- Temperature ramping from 0.1C per hour to 70.0C per hour
- Non-programmable controls (IN30) or fully programmable controls (IN35)
- Programmable Model IN35 holds 3 programs in memory with 10 steps per program. Each program step is a temperature, temperature ramp rate (if wanted) and time.
- 27.5 Liter Volume
- Timer with alarm and Auto-Off
- Electronic calibration and power failure protection
- RS232 interface
- Stacker available for 2-IN40/IN45 and up to 3-IN30/35 using 2 stackers (IN30-300)
- 12 month warranty
- UL, CSA and CE listed
Applications
- Protein crystal growth
- Hybridizations
- Enzyme reactions and deactivations
- Ligations
- Storing Oocytes at 17.0°C
- Incubating marine cultures below ambient
- Culture growth above, below or at ambient
- BODs
- Storing DNA libraries
Full Product Specifications
| Temperature | |
|---|---|
| Range | 4.0° to 70.0°C |
| Readability | 0.1°C |
| Accuracy | ± 0.2°C |
| Stability | ± 0.1°C |
| Sensor Type | Platinum RTD |
| Controller Type | PID |
| Chamber Uniformity | ± 0.5°C |
| Timer | |
| Range | 99 hours |
| Readability | 1 second |
| Audible Alarm | Yes |
| Auto-Off, user settable | Yes |
| Dimensions: Overall | |
| IN30/IN35 | 15.5” (39.4 cm) Height x 22.25” (56.5 cm) Width x 18.5” (47 cm) Depth |
| Chamber | |
| Chamber Dimensions: IN30/IN35 | 12” (30.5 cm) Height x 14” (35.6 cm) Width x 10” (25.4 cm) Depth |
| Number of Shelf Slots | 4 |
| Number of Shelves Included | 2 |
| Weight | |
| IN30/IN35 | 36 lbs (16.3 kg) |
| Electrical | |
| Unit Operates from | 12 VDC from Bench Top Universal Power Supply |
| Operating Voltage | Inputs AC from 100 VAC, 50/60Hz to 265 VAC 50/60Hz |
| Current Draw | 2 amps |
