Analog Stirring Corrosion Resistant Hot Plates

SKU: N/A Category:

Heat and stir aggressive solutions on these corrosion resistant models with 12” ceramic heater tops.

Manual

Data Sheet

Clear

Description

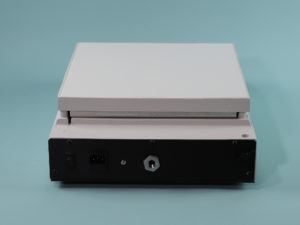

Each Torrey Pines Scientific® hot plate is made with a cast aluminum chassis that is painted with chemically resistant epoxy paint. The chassis is designed to keep spills out of the case. Heating and stirring controls are solid state and are mounted well forward of the heater surface to prevent accidental burns. Additionally, the solid ceramic heater plate is framed in cast aluminum and is designed to keep heat from the edge of the heater plate. Hot plate stirrers are available in the “C” version with minimal chassis openings and purge ports for pressurizing the inside of the chassis with lab air or any inert lab gas. This positive pressure keeps aggressive vapors from getting inside the chassis and away from the control electronics extending the life of the unit.

Includes products: EchoTherm™ HS11C, EchoTherm™ HS15C, EchoTherm™ HS19C



Features

  • Heat to 450°C on plate surface in minutes
  • Stir from 100–1500 rpm on each stirring position with individual controls
  • Stir 5-800 ml beakers on HS15C
  • Stir 9-400 ml beakers on HS19C
  • Stir 4 liters on HS11C
  • Plate size on all units is 12” (30.48 cm) x 12”(30.48 cm)
  • Solid ceramic heater surface for excellent chemical resistance
  • Heater plate mounted in cast aluminum frame that remains cool for safety
  • Powerful 1200 watt heaters on HS15C and HS19C hot plate/stirrers. 1400 watt heaters on HS11C
  • Fused for safety
  • Rugged cast aluminum chassis
  • 12-month warranty
  • UL, CSA and CE certified

Applications

  • Acid digestions or dissolutions of minerals at high temperatures
  • Cleaning or etching silicone wafers in aggressive chemicals
  • Dissolution of polymers or resins
  • Cleaning electronic or other parts with aggressive chemicals
  • Making polymers in a silicone bath
  • Heating solvents

Full Product Specifications

Stirrer
Speed range unloaded 100–1500 rpm
Maximum load, aqueous 5-800ml beakers (HS15); 9-400ml beakers (HS19), 4-liters (HS11)
Magnet strength 20 lbs
Weight capacity on heater surface Over 50 lbs (22.5 kg)
Temperature Measurement
Temperature Range 100–450°C
Temp stability =/_ 2.5°C
Heater power in watts 1400 watts (HS11C), 1200 watts (HS15C and HS19C)
Electrical
Operating voltages available 100 VAC/50 Hz, 115 VAC/60 Hz, 220 VAC/60 Hz and 230 VAC/50 Hz
Power consumption Varies by Model: 1400 watts (HS11C), 1500 watts (HS15C); 1700 watts (HS19C)
Current Draw: 100/115 VAC Models HS11C (12 amps), HS15C (12.5 amps), HS19C (14.5 amps)
