Digital Programmable Stirring Hot Plates
When you cannot be in two places at once, these equipment are ideal for complete walk-away heating and stirring applications.
All units are supplied with a stainless steel immersion probe.
Visit ACCESSORIES to see all our temperature probes and calibration kits.
HS40/HS40A Manual
HS60A/HS60A & HS61/HS61A Manual
HS40/HS40A Data Sheet
HS60/HS60A Data Sheet
HS61/HS61A Data Sheet
Description
EchoTherm™ Fully Programmable Digital Stirring Hot Plates are the most advanced and easy-to-use units available. In manual operation, simply select the parameter to be set and enter the value needed and the unit will do the rest. In the programmable mode, routines can be stored for instant recall and use. The stored routine will run automatically, without attention, and exactly the same time after time.
Programs can be simple or complex depending upon the need. Multiple temperatures, temperature ramp rates, stirring speeds and timed events can be stored. When run, the unit monitors the program to be sure it runs exactly as written. Complete walk-away automation.
We offer two different heater top materials: ceramic glass and milled-flat cast aluminum:
- Ceramic glass tops have a maximum plate surface temperature in our units of 450ºC. They heat and cool very quickly
and are more corrosion resistant than alumnimum plates. They are designed for heating a solution in a vessel. - Aluminum tops have a maximum plate surface temperature in our units of 450ºC. They are recommended for heating a solid on the heater plate surface. They heat more evenly than ceramic tops.
Includes the following product variants: EchoTherm™ HS61, EchoTherm™ HS61A, EchoTherm™ HS60, EchoTherm™HS60A, EchoTherm™HS40, EchoTherm™ HS40A
Features
- 10-program memory stored in CMOS. No batteries required
- Each program can be 10 steps, where each step includes a temperature, stirring speed, time and heating rate
- Repeat any program 1–98 times automatically. Infinite repeats settable
- Programmable and non-programmable operation
- Platinum RTD temperature measurement for ±1% accuracy
- Solid ceramic heater top for quick heating on a flat, white, chemically resistant surface

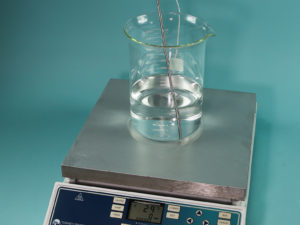

- Milled-flat cast aluminum top available for use with solids on the plate surface (‘A’ versions)
- Temperature ramping for exact heating and cooling rates
- PID temperature control to 1°C on plate surface or solution with accessory probe
- Stir aqueous solutions from 100–1500 rpm
- Stirrer capacity aqueous solutions: 2 liters HS40, 4 liters HS60 and 4 liters HS61
- Timer goes up to 99 hours, 59 minutes, 59 seconds with user settable Auto-Off
- Electronic calibration stored in CMOS
- RS232 interface for control or recording data on a computer

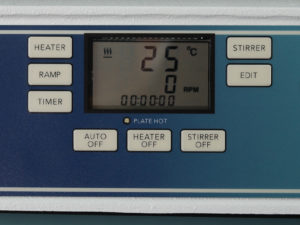

- Custom display of all parameters all the time
- 12-month warranty
- ETL, CSA and CE compliant
Applications
- Removal of oxides from metallic powers
- Precise control of polymerization reactions
- Gas solubility in organic solvents
- Digestion of plant tissue samples for assay of organic elements
- Ring and ball testing
- Process control in the extraction of metals from ores
- Development of processes and materials for the semiconductor industry
- Acid bath removal of thin films optical coatings
- Leaching studies
- Catalysis research
- Dissolutions
- Blending petrochemical products
- Makaing agarose solutions
- Electrochemistry
Full Product Specifications
| Programming | |
|---|---|
| Memory capacity | 10 programs |
| Individual Program Capacity | 10 steps per program where a step is a target temperature, heating rate, stirring speed and timer |
| Repeat a Program Automatically | 1 to 98 times or infinitely |
| Temperature Measurement | |
| Platinum RTD | 100 ohm at zero in plate and in probe |
| Temperature Range | 0–450°C |
| Readability | 1°C |
| Temperature control type | PID |
| Temperature accuracy | 1% ± |
| Temp stability | 1°C |
| Heater power in watts | Varies by Model: 400 watts on 15.4 cm units, 600 watts on the 20.3 cm units and 1400 watts on the 30.48 cm units |
| Stirrer | |
| Speed range unloaded | 100-1500 rpm |
| Readability | 1 rpm |
| Settability | Nearest 10 rpm |
| Electrical | |
| VAC | 115 VAC, 50/60 Hz (230 VAC available upon request) |
| Fused | yes |
| Line Cord | Detachable, 6 foot (1.8 meter), three-wire grounded |
| Dimensions - 15.24cm x 15.24cm Top Units | |
| Width | 7.5” (17.8 cm) |
| Depth | 10.0” (25.4 cm) |
| Height | 4.5” (11.43 cm) |
| Dimensions - 30.5cm x 30.5cm Top Units | |
| Width | 12.5” (31.75 cm) |
| Depth | 18.0”(45.7 cm) without line cord plugged in |
| Height | 4.5” (11.43 cm) |
| Dimensions - 20.3cm x 20.3cm Top Units | |
| Width | 9.125” (23.18 cm) |
| Depth | 15.75” (40.01 cm) |
| Height | 4.75” (12.07 cm) |
